Presentation
| Product range | DPS150 |
| Product type | Stabilized Continuous Current Source |
Sale package
| Pack | Blister |
| Content | Power Cable / Cables / Stabilized Continuous Current Source |
| Product status | New |
Sold out

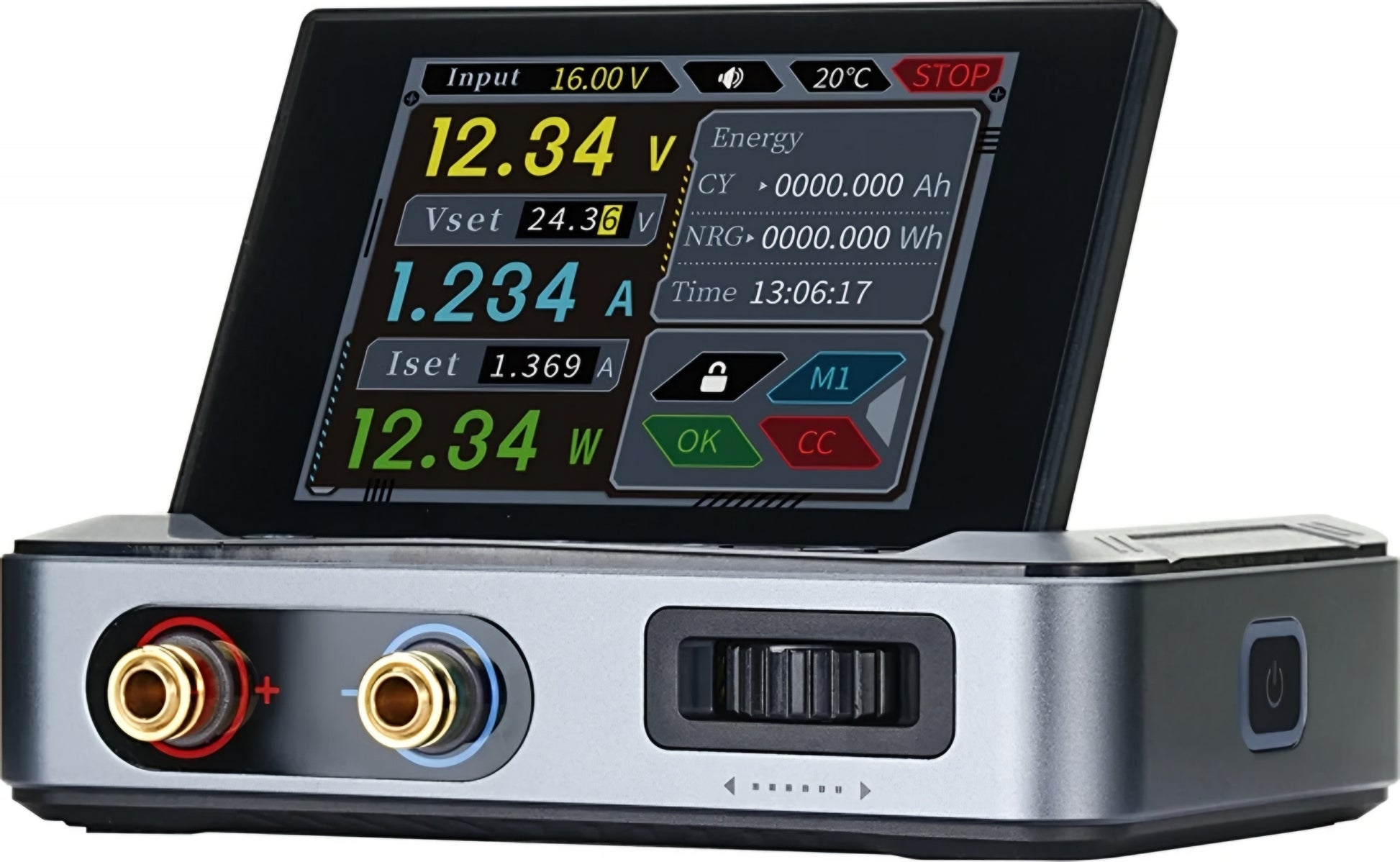

Fnirsi DPS150 Stabilized DC Power Supply
The FNIRSI DPS150 is a compact and programmable stabilized DC power supply designed for laboratory, service, education
and electronic projects applications. It offers precise voltage and current adjustment, making it ideal for powering sensitive circuits, testing components

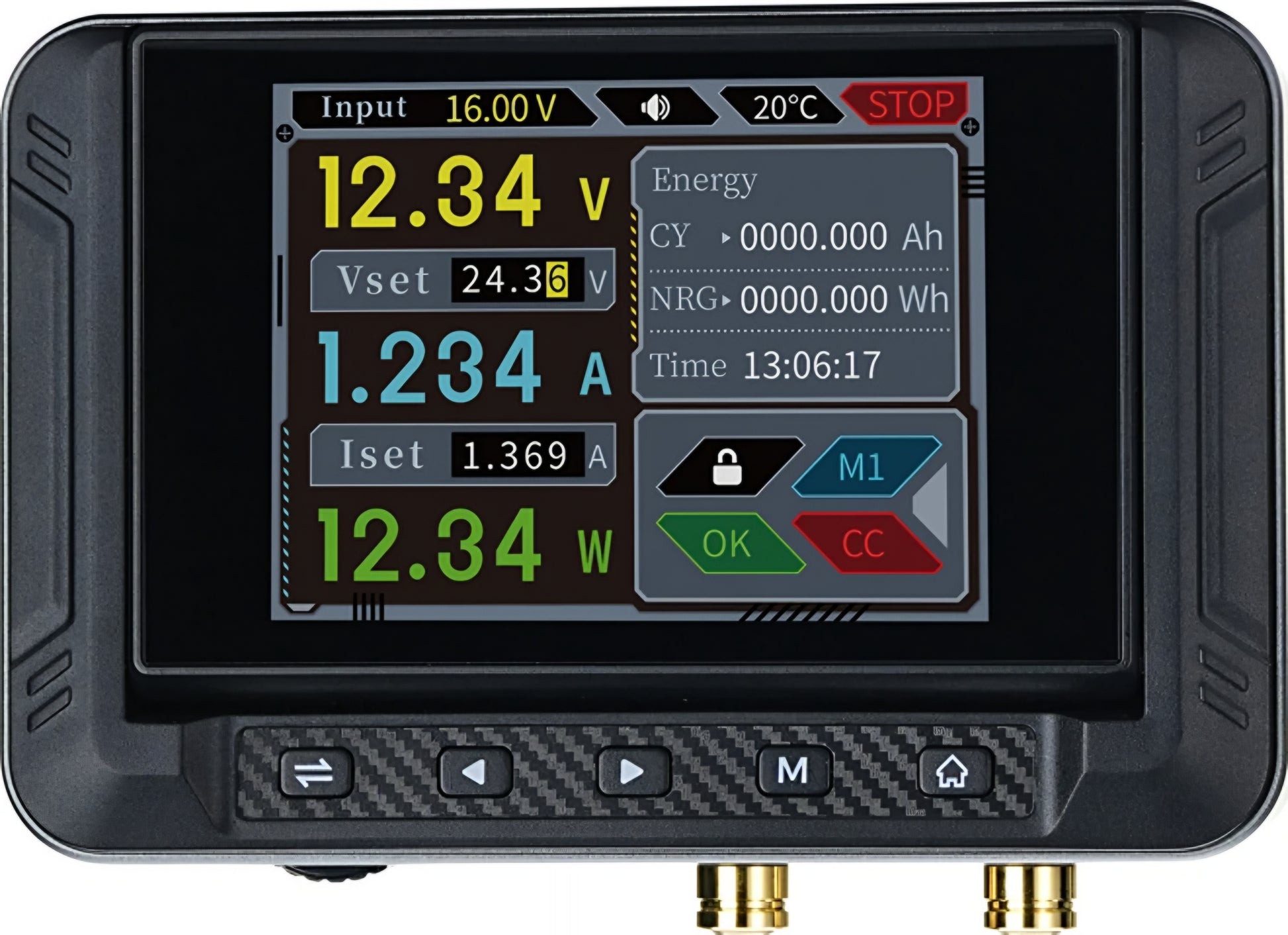

or developing prototypes. Equipped with a 2.8-inch color IPS screen with 320 x 240 px resolution and 90-degree rotation, it displays in real time
essential parameters such as voltage, current, power, temperature, and energy consumption. The device allows saving up to 6

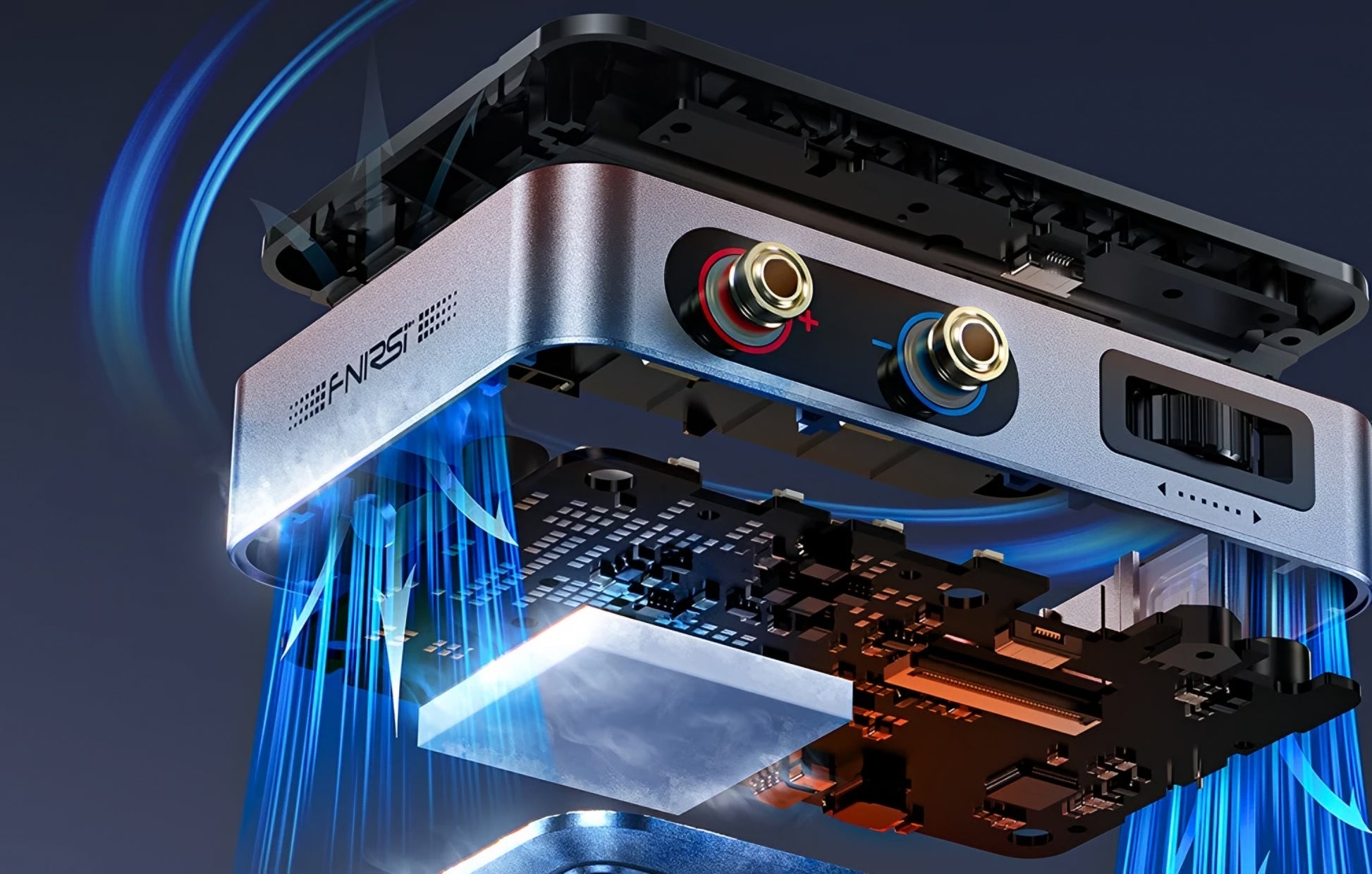

preset profiles for quick switching between operating modes. The aluminum construction acts as a passive radiator for efficient cooling and
stable operation, while the complete protection system (OVP, OCP, SCP, OTP, and reverse polarity protection) ensures the safety of connected devices. Thanks to
flexible power supply - classic DC or USB-C with PD/QC - the DPS150 can also be used in the field, powered by a power bank or
laptop charger. The low noise level and ripple under 20 mV guarantee high performance even for audio circuits,
sensors, or sensitive microprocessors.
Features:
- Compact and programmable laboratory stabilized power supply
- Precise voltage and current adjustment
- 2.8" color IPS screen with 320 x 240 px resolution and 90-degree rotation
- Real-time display: voltage, current, power, temperature, energy meter
- Graphic modes and classic numeric display
- Save up to 6 preset profiles
- Efficient cooling through aluminum case and thermally conductive silicone
- Complete protections: OVP, OCP, SCP, OTP, reverse polarity protection
- Low ripple under 20 mV for sensitive circuits

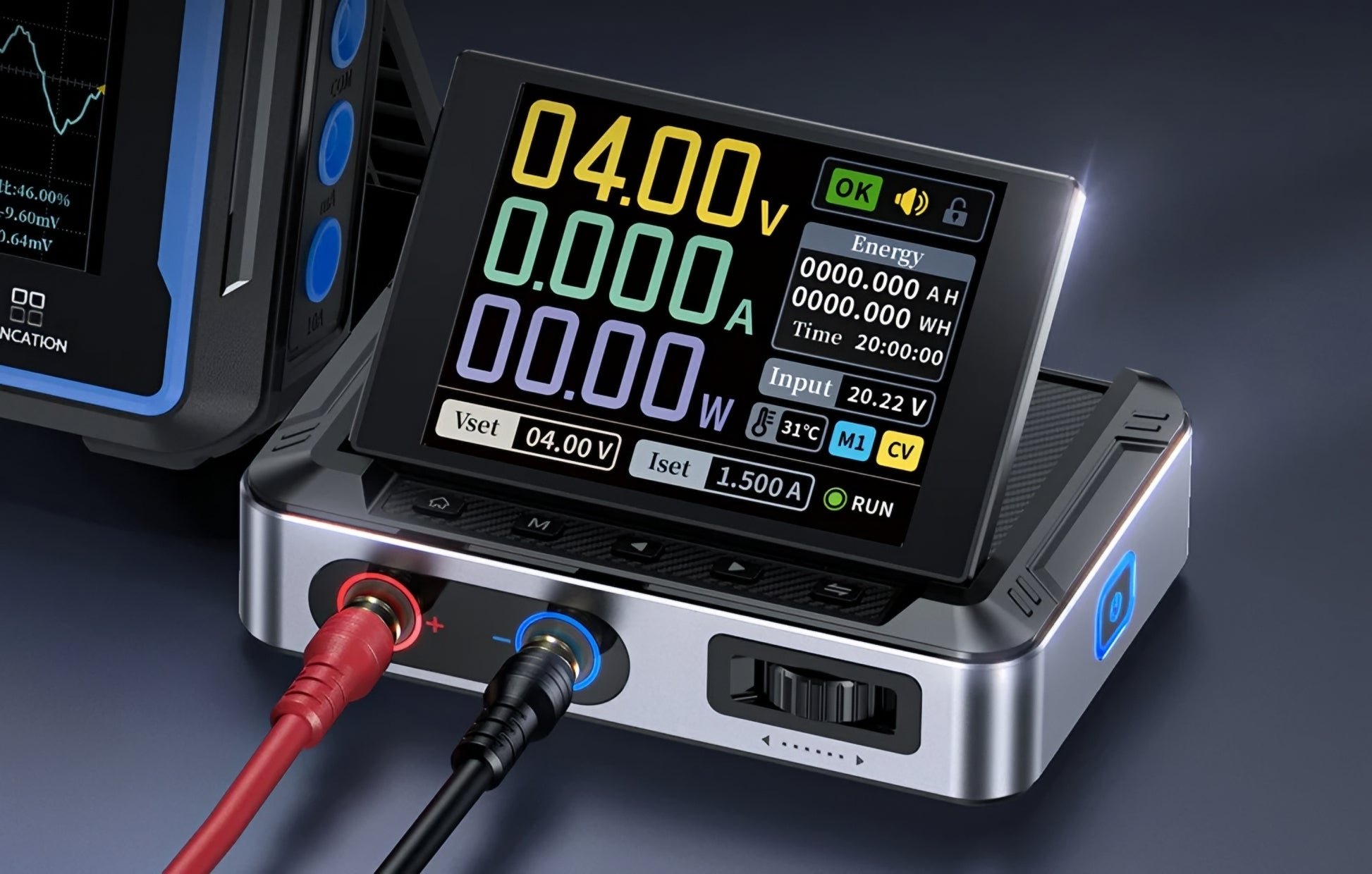

- Compatible connectors: 4 mm banana, U-type fork, classic wires

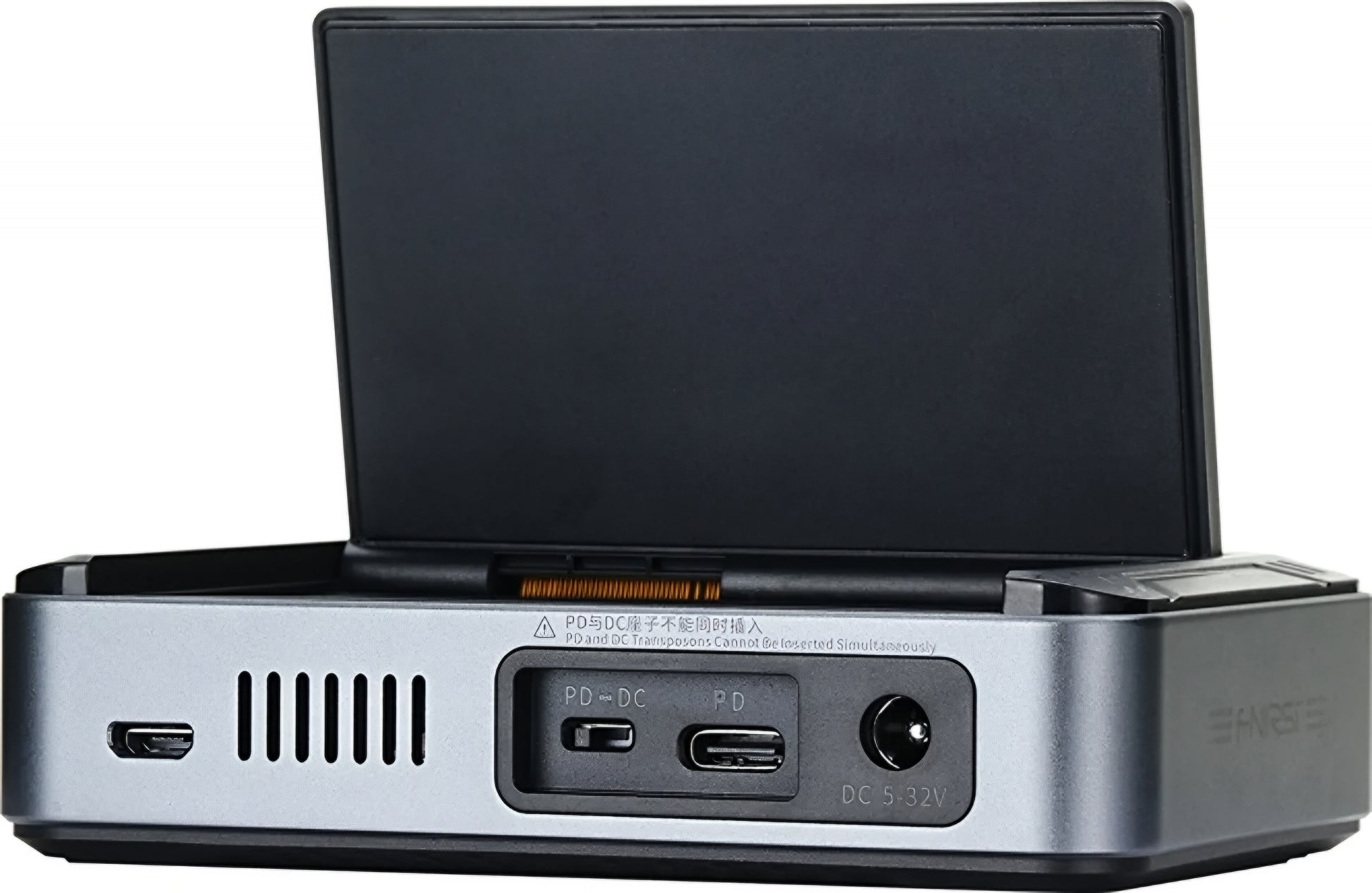

- Power supply DC 5-32V or USB-C PD/QC (power bank, laptop charger)
- Robust metal sockets with screws for secure contact
- Stable operation even under heavy load
- Suitable for service, laboratory, education, and DIY electronic projects
Package contents:
- Power Cable
- Cables
- Stabilized DC Power Supply
